1 CRT CUP
2 CABLE ASSEMBLY, DISK DRIVE, LISA 1.0/2.0
3 NUT/WASHER ASSY, M3 0.5, LISA/MACINTOSH XL FLYBACK
4 LISA/MACINTOSH XL FLYBACK TRANSFORMER
5 NUT/WASHER ASSY, CARD CAGE CHAMBER
6 CABLE ASSEMBLY, POWER, LISA 1.0
7 VIDEO BOARD SCREW, 6-32X3/16

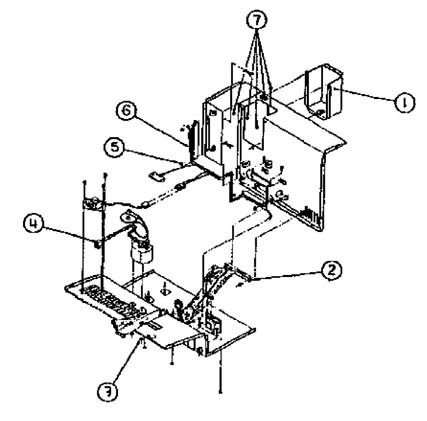

LISA 1 ILLUSTRATED PARTS LIST - FIGURE 4
OF 8
SOURCE: LISA LEVEL I TECHNICAL PROCEDURES (OCTOBER 1988)
CHASSIS I
1 CRT CUP
2 CABLE ASSEMBLY, DISK DRIVE, LISA 1.0/2.0
3 NUT/WASHER ASSY, M3 0.5, LISA/MACINTOSH XL FLYBACK
4 LISA/MACINTOSH XL FLYBACK TRANSFORMER
5 NUT/WASHER ASSY, CARD CAGE CHAMBER
6 CABLE ASSEMBLY, POWER, LISA 1.0
7 VIDEO BOARD SCREW, 6-32X3/16
