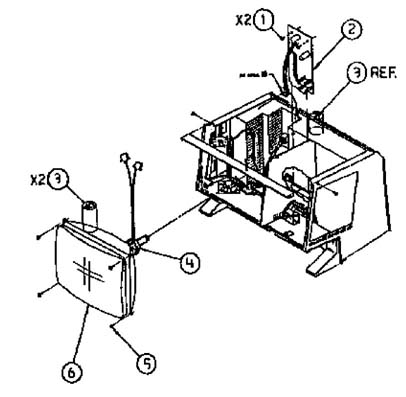

LISA 1 ILLUSTRATED PARTS LIST - FIGURE 3 OF 8
SOURCE: LISA LEVEL I TECHNICAL PROCEDURES (OCTOBER 1988)

VIDEO ASSEMBLY

I VIDEO BOARD SCREW, 6-32X3/16
2 LISA/MACINTOSH XL VIDEO BOARD
3 LABEL, DANGER
4 MAGNET, YOKE TRIM
5 SERRATED WASHER CRT 8-32XO.375
6 LISA/MACINTOSH XL CRT YOKE ASSEMBLY
